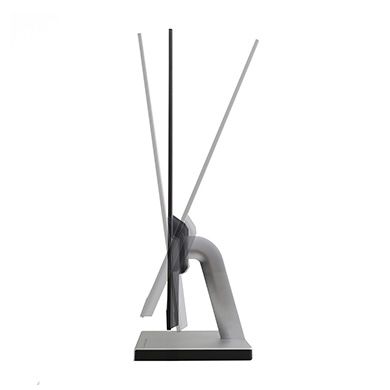

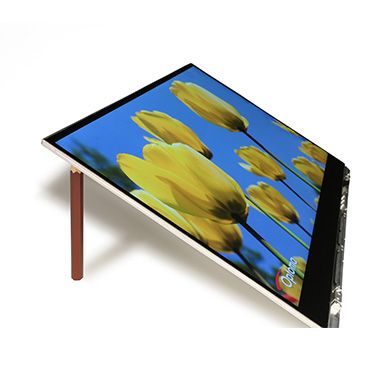

Display Head Structure
Display head structure mainly applies to desktop monitor application with integrated technology and unlimited to certain size of display. For desktop monitor product using Coretronic special high demonic range back light technology with traditional PMMA LGP or Glass LGP, display head structure brings the benefits including high color gamma, width view angle, curved shape, slim and narrow border and a perfect match of gaming purpose.
Glass LGP Display head PC monitor Specification
| 27 inch | |
|---|---|
| Outline (mm) | 610x352.3x4.7 |
| CELL A.A. (mm) | 597.9x336.3 |
| Number of Pixels | 1920x1080 |
| Brightness (cd/m2) | 425 |
| Display mode | IPS (Normally Black) |
| NTSC | 78% |
| Viewing angle | 89/89/89/89 |
| Cell Power | 6.6W |
| BKL Power | 20.8W |
| LGP Material | Glass |
| Interface | eDP |

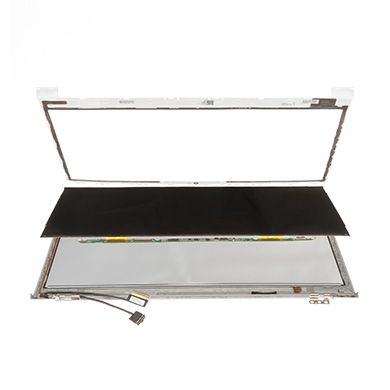

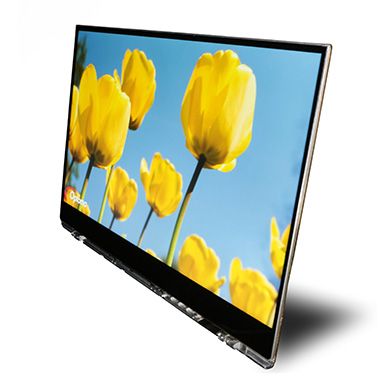

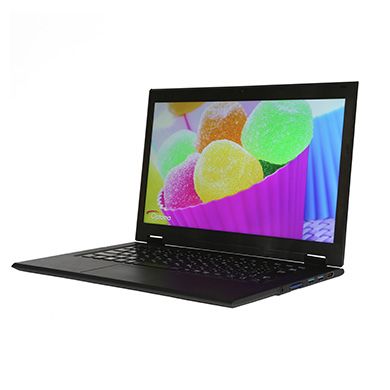

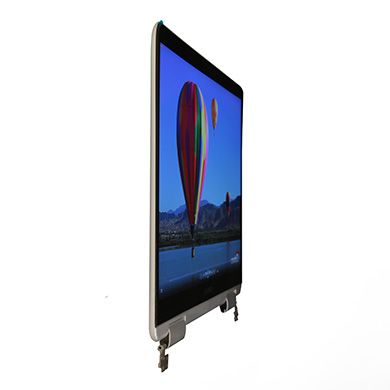

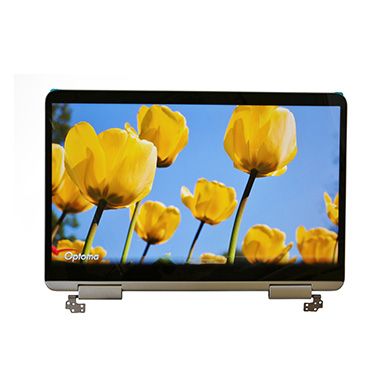

Hinge-Up Structure and Customized LCM
Hinge-Up structure and customized LCM mainly applies to notebook application with integrated technology and unlimited to certain size of display. For notebook product with main frame, cover glass or touch panel, Hinge-Up structure brings the ultimate performance of light, slim and compact design.
Light Weight Hinge up Specification
| 13.3 inch | |
|---|---|
| Outline (mm) | 318.5 x 216.2 x 6.5 |
| CELL A.A. (mm) | 293.76×165.24 |
| Number of Pixels | 2560 x 1440 |
| Brightness (cd/m2) | 200 |
| Display mode | VA (Normally Black) |
| NTSC | 72% |
| Viewing angle | 80/80/80/80 |
| Cell Power | 2.51 W |
| BKL Power | 6.6 W |
| LGP Material | PMMA |
| Interface | eDP |
Ultra-Slim Hinge-up Specification
| 13.3 inch | |
|---|---|
| Outline (mm) | 304.19 x 199.621 x 3.15 |
| CELL A.A. (mm) | 293.76×165.24 |
| Number of Pixels | 1920 x 1080 |
| Brightness (cd/m2) | 320 |
| Display mode | VA (Normally Black) |
| NTSC | 72% |
| Viewing angle | 80/80/80/80 |
| Cell Power | 1W |
| BKL Power | 2.08W |
| LGP Material | Glass |
| Interface | eDP |

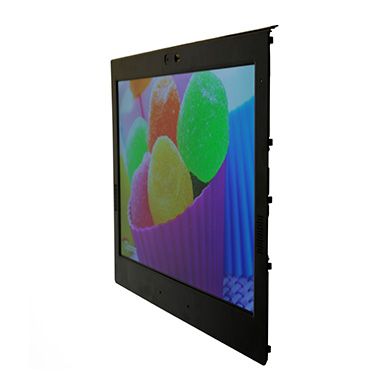

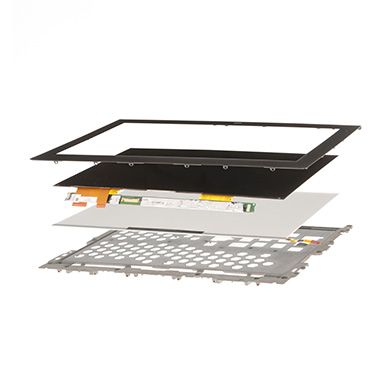

MFA (Main Frame Around) Structure
MFA(Main Frame Around) structure mainly applies to handheld mobile device with integrated technology and unlimited to certain size of display. A perfect match of weight and size demanding tablets or smart phones!
Light Weight MFA Specification
| 11.6 inch | |
|---|---|
| Outline (mm) | 291.976x192.334x6.5 |
| CELL A.A. (mm) | 256.32x144.18 |
| Number of Pixels | 1920x1080 |
| Brightness (cd/m2) | 200 |
| Display mode | IPS (Normally Black) |
| NTSC | 72% |
| Viewing angle | 89/89/89/89 |
| Cell Power | 1.24W |
| BKL Power | 2.12W |
| LGP | PMMA |
| Interface | eDP |

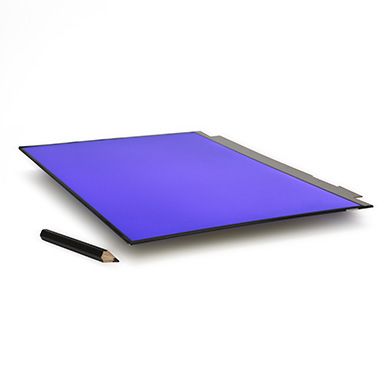

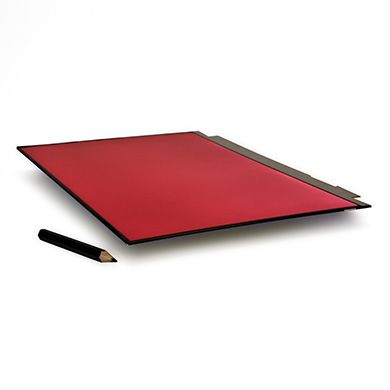

Customization LCM and LCMt
Customization LCM and LCMt mainly applies on notebook and handheld mobile device like tablet for customer special needs. For notebook and tablet product with cover glass, touch panel, and also pen solution, that brings the ultimate performance of light, slim and compact design.
LCMt Specification
| 13.3 inch | |
|---|---|
| Outline (mm) | 304.87 x 192.83 x 5.5 |
| CELL A.A. (mm) | 298.36 x 175.29 |
| Number of Pixels | 1920 x 1080 |
| Brightness (cd/m2) | 350 |
| Display mode | IPS (Normally Black) |
| NTSC | 70.8% |
| Viewing angle | 85/85/85/85 |
| Cell Power | 1.6W |
| BKL Power | 4.31W |
| LGP | PMMA |
| Interface | eDP |

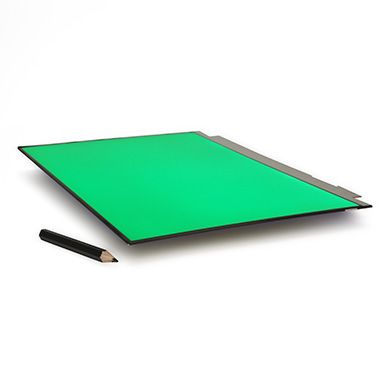

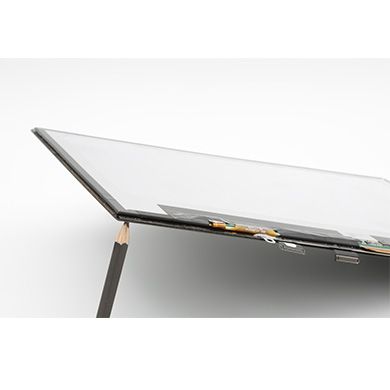

Ultra-Slim LCM Specification
| 12.3 inch | |
|---|---|
| Outline (mm) | 265.2 x 193.47 x 1.673 |
| CELL A.A. (mm) | 259.2 x 172.8 |
| Number of Pixels | 2400 x 1600 |
| Brightness (cd/m2) | 400 |
| Display mode | IPS (Normally Black) |
| NTSC | 70.8% |
| Viewing angle | 85/85/85/85 |
| Cell Power | 1.8W |
| BKL Power | 3.81W |
| LGP | PC |
| Interface | eDP |
Switchable Privacy LCM
Switchable Privacy LCM let user can control the display view angle for share mode or privacy mode with view angle switchable backlight technology. When user change the display to privacy mode, the backlight can only emits light of narrow viewing angle. Other people cannot see the contents on the screen easily. When changing to share mode, the backlight emits light of all viewing angle as normal LCM and let user can share the information on the screen to others.

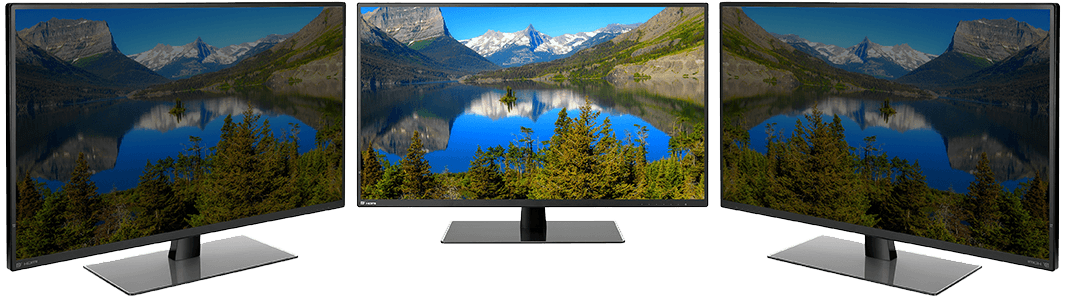

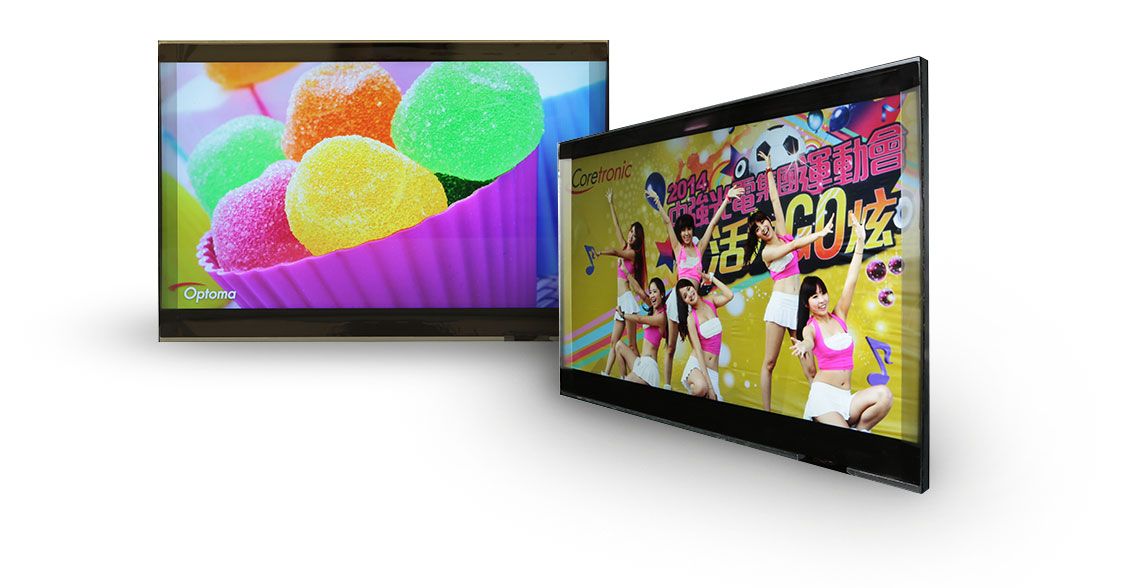

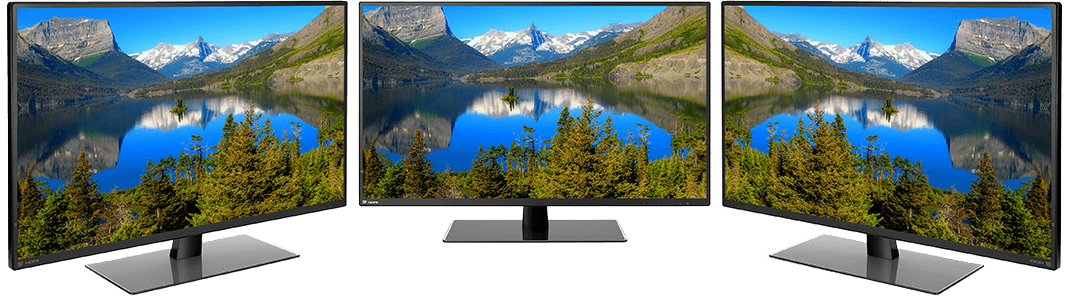

Seamless Display Technology
Seamless display technology utilized special optical components to extend LCD screen to black borders could brought user a border free viewing experience. This technology is perfect for gaming multi monitor or TV video wall application.
